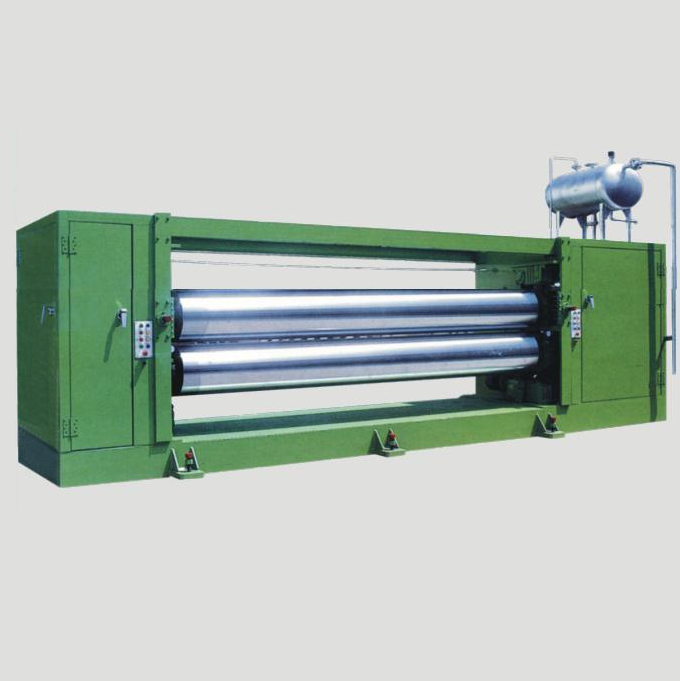

Textile Non- Woven Machines-Calender

Short Description:

Textile Non- Woven Machines-Calender: Machine frame is welded by profiled bar and armor plate, then eliminate internal stress by temper in order to be ametabolic forever. The roller is made of 45#. It must be made after anneal, simple-to manufacture. plated with chromium or teflon, careful lathe. Etc. The surface roughness is 0.8. There is good heat-transfer oil in the rollers. It’s heated by stainless steel pump. On one side of the roller, there is a single in-and-out revolving joint connec...


  • FOB Price: Variable
  • Min.Order Quantity: 100 Units
  • Supply Ability: 10000 Units per Month
  • Payment Terms: L/C,D/P,D/A,T/T
  • Main Port: Shanghai,Ningbo,ShenZhen,TianJin
  • Product Detail

    Product Tags

    Textile Non- Woven Machines-Calender:

    • Machine frame is welded by profiled bar and armor plate, then eliminate internal stress by temper in order to be ametabolic forever.
    • The roller is made of 45#. It must be made after anneal, simple-to manufacture. plated with chromium or teflon, careful lathe. Etc. The surface roughness is 0.8. There is good heat-transfer oil in the rollers. It’s heated by stainless steel pump. On one side of the roller, there is a single in-and-out revolving joint connected with oil compensator so that the oil in the rollers is kept out of broken off.
    • First measure the temperature inside the rollers, then transfer to the control cabinet, enactment the temperature scope and the temperature auto-controlled within 2℃.
    • Dance system of the roller: Distance between two rollers can be adjusted by manual.
    • Bearing: using Tuolindon band which is resisting high temperature and made in China. Bearing support is being high-precision techniques by cast iron. It is full of butter in order to be ametabolic under normal state.
    • Joint: 1.5’, resisting high temperature, revolving.
    • Driving method: electrical machinery + worm gear rducer + c

    Specifications

      Working width
    (mm)

    Max temperature
    ( ℃ )

    Heating style



    Working pressure

    (kg/cm)

    Temperature difference

    ( ℃ )

    Roller type

    Power
    (kw)

    2500

    ≤230

    Heating oil, intrinsic cycle

    ≤45

    ≤±2

    Two rollers

    38

    Features

    Apply for light weight nonwoven fabrics, such as sanitary material, interlining, shoe’s and bag’s lining, filter media,etc.
