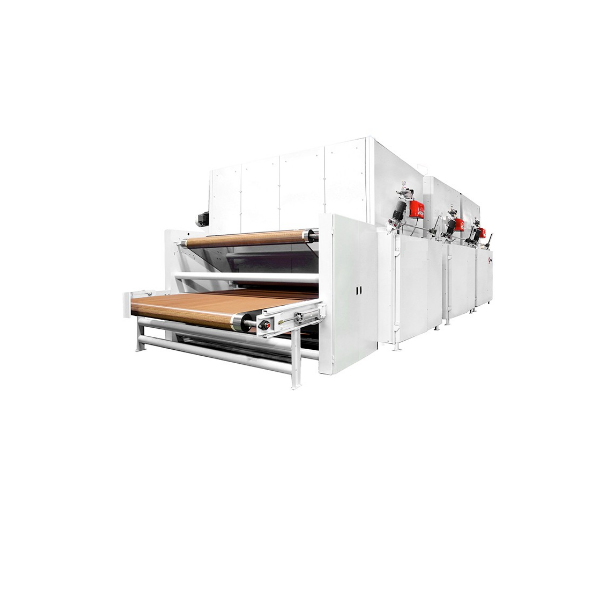

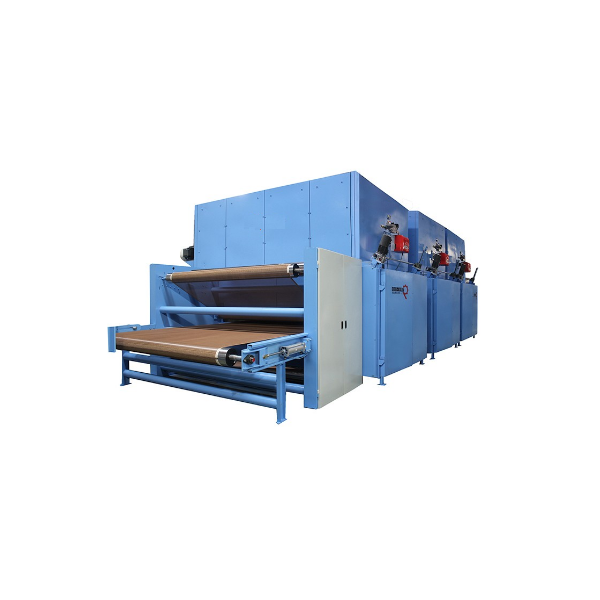

Textile Non- Woven Machines-Oven

Short Description:

Textile Non- Woven Machines-Oven: This machine completes web Bonding and finishing system which is a part of complete Nonwoven Process. Normally this machine follows the side cutting and suction immediately after with cutting section. The web airlaid and cutting and suction unit would be fed into this machine, which is preliminary bonded. It is to melt the low belt fiber thoroughly and thermal bonded the fiber into felt, then feed into the finish section. The heat flow can be adjusted in all ...


  • FOB Price: Variable
  • Min.Order Quantity: 100 Units
  • Supply Ability: 10000 Units per Month
  • Payment Terms: L/C,D/P,D/A,T/T
  • Main Port: Shanghai,Ningbo,ShenZhen,TianJin
  • Product Detail

    Product Tags

    Textile Non- Woven Machines-Oven:

    This machine completes web Bonding and finishing system which is a part of complete Nonwoven Process. Normally this machine follows the side cutting and suction immediately after with cutting section. The web airlaid and cutting and suction unit would be fed into this machine, which is preliminary bonded. It is to melt the low belt fiber thoroughly and thermal bonded the fiber into felt, then feed into the finish section. The heat flow can be adjusted in all the chambers ensuring the right amount of heat flows deep inside the fabric.

    Specifications

    • Working width: 1500-3500mm
    • Working speed: 2-10m/min
    • Grams: 300-4000gsm
    • Output per hour: 200-300kg/h

    Features

    • High speed, high yield, heating in section, separate temperature control.
    • High penetration, large air volume adjustable, low gram weight, high gram weight products are suitable.
    • The way of blowing can be adjusted online, up and down, down and up, on the way of blowing arbitrary combination.
